288540
Seal clip
Contact us
Description

SEAL CLIP

Application
Body
Body
Exterior
Exterior
Exterior trim
Exterior trim
Download document

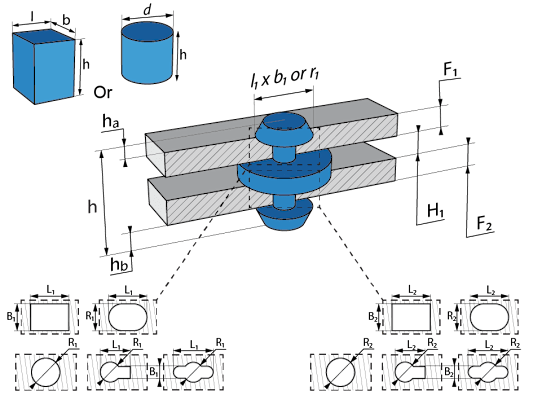

Dimensions
Use condition dimensions (mm)
F1 - Panel Thickness
0.7 - 1.2
R1 - Hole Diameter
5.8 - 6.2
Product dimensions (mm)
b - Width
4.9 - 5.1
b1 - Width
4.9 - 5.1
h - Height
9.3
ha - Height above the support
1.4 - 1.6
hb - Height below support
5.7
l - Length
14.7 - 15.1
l1 - Length
14.7 - 15.1
Design
Hole mount
Hole mount
Round hole
Round hole
Pushing in
Pushing in
Wedging in
Wedging in
