285976

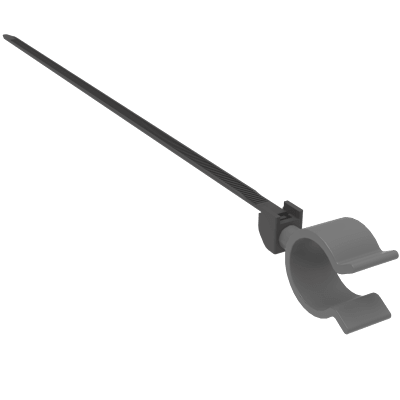

Cable & tube strap
Description
2 HOUSINGS CABLE & TUBE STRAP
Application
Electric & electronics & cleaning
Electrical distribution system
Low voltage EDS
Dimensions
Use condition dimensions (mm)
D1 - Tube/Cable Diameter
1 - 50
D2 - Tube/Cable Diameter
16 - 18
Product dimensions (mm)
b - Width
12
bt1 - Tie Width
5
e1 - Center to Center distance
24
h - Height
20
l - Length
249.5
Design
Tube mount
No mount
2 housings
Pushing on
Pull tie through fitting
