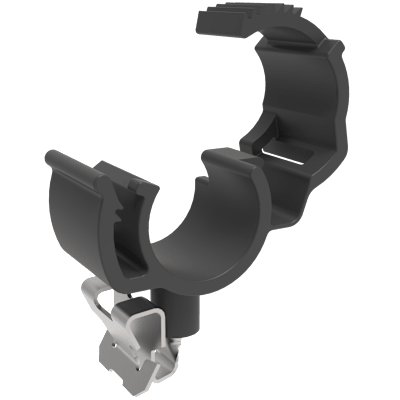

285408
Cable, tube & busbar holder
Contact us
Description

1 HOUSING CABLE, TUBE & BUSBAR HOLDER

Application
Powertrain
Powertrain
Fluid distribution system
Fluid distribution system
Ev thermal management
Ev thermal management
Ice thermal management
Ice thermal management
Download document
Dimensions
Use condition dimensions (mm)
D1 - Tube/Cable Diameter
14 - 15
F1 - Panel Thickness
1 - 3.5
Product dimensions (mm)
b - Width
15
h - Height
43.3
h1 - Height
10
l - Length
32.7
l1 - Length
5.25
Design
Tube mount
Tube mount
Edge mount
Edge mount
1 housing
1 housing
Manually lock
Manually lock
Clipping on
Clipping on
