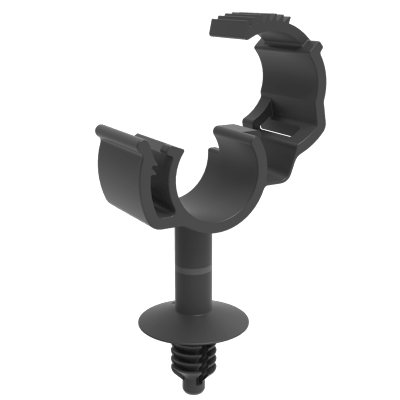

Cable, tube & busbar holder
Description
1 HOUSING CABLE, TUBE & BUSBAR HOLDER
Application
Powertrain
Fluid distribution system
Ev thermal management
Ice thermal management
Download document
Dimensions
Use condition dimensions (mm)
D1 - Tube/Cable Diameter
14 - 15
F1 - Panel Thickness
0.6 - 6
R1 - Hole Diameter
6.5 - 6.7
Product dimensions (mm)
b - Width
15
h - Height
61
h1 - Height
25.7
hb - Height below support
6.45 - 11.85
l - Length
32.7
r1 - Contact Diameter
18
Design
Tube mount
Hole mount
Round hole
1 housing
Manually lock
Pushing in
