Cable, tube & bus bar holder
Description

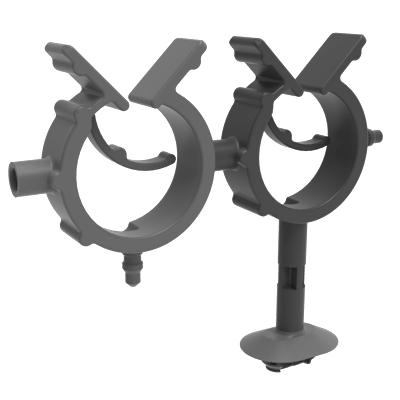

2 HOUSINGS CABLE, TUBE & BUS BAR HOLDER
Application
Powertrain
Fluid distribution system
Ice thermal management
Ev thermal management

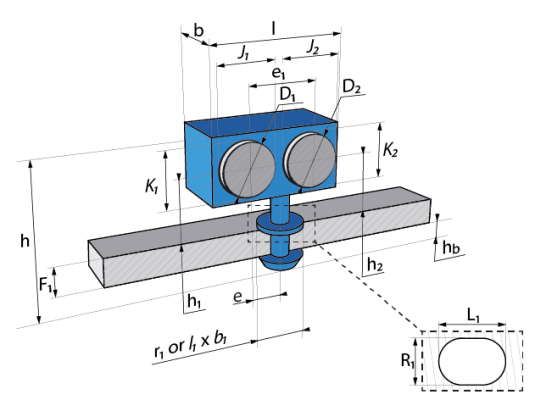

Dimensions
Use condition dimensions (mm)
D1 - Tube/Cable Diameter
16 - 24
D2 - Tube/Cable Diameter
16 - 24
F1 - Panel Thickness
0.6 - 3
L1 - Length of Hole
12.1 - 12.3
R1 - Hole Diameter
6.1 - 6.3
Product dimensions (mm)
b - Width
10
b1 - Width
16.4
e - Center to Center distance
36.7
e1 - Center to Center distance
36.7
h - Height
70.8
h1 - Height
43.1
h2 - Height
43.1
hb - Height below support
2.7 - 5.1
l - Length
80.9
l1 - Length
22.4
Design
Tube mount
Hole mount
Oblong hole
2 housings
Pushing in
Pushing on
