283603
Cable & tube strap
Contact us
Description

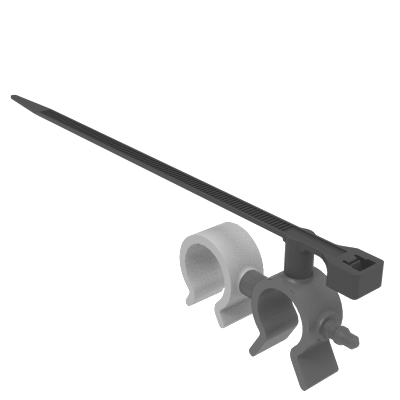

3 HOUSINGS CABLE & TUBE STRAP

Application
Powertrain
Powertrain
Fluid distribution system
Fluid distribution system
Fuel delivery system
Fuel delivery system
Download document

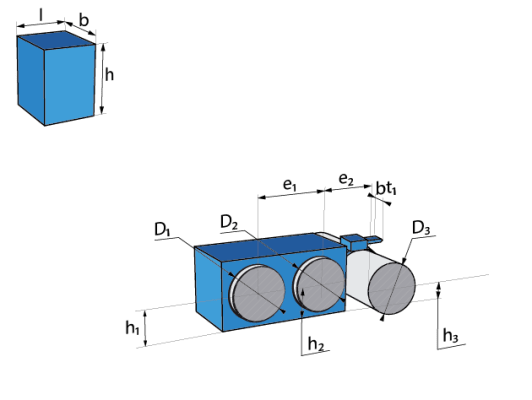

Dimensions
Use condition dimensions (mm)
D1 - Tube/Cable Diameter
14 - 15
D2 - Tube/Cable Diameter
13 - 14
D3 - Tube/Cable Diameter
8 - 33
Product dimensions (mm)
b - Width
10
bt1 - Tie Width
4.5
e1 - Center to Center distance
24
e2 - Center to Center distance
17.75
h - Height
140
l - Length
31.75
Design
No mount
No mount
Tube mount
Tube mount
3 housings
3 housings
Pushing on
Pushing on
Pull tie through fitting
Pull tie through fitting
