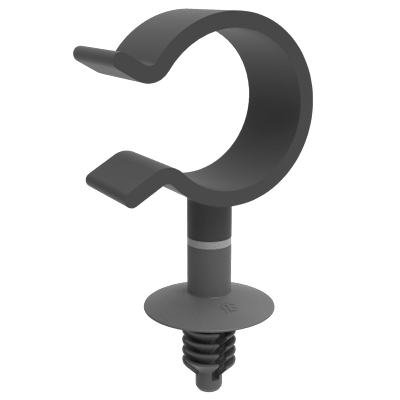

283232
Cable, tube & busbar holder
Contact us
Description

1 HOUSING CABLE, TUBE & BUSBAR HOLDER

Application
Powertrain
Powertrain
Fluid distribution system
Fluid distribution system
Ice thermal management
Ice thermal management
Download document
Dimensions
Use condition dimensions (mm)
D1 - Tube/Cable Diameter
19 - 24.5
F1 - Panel Thickness
0.6 - 6
R1 - Hole Diameter
6.5 - 6.7
Product dimensions (mm)
b - Width
12
h - Height
52
h1 - Height
27.55
hb - Height below support
6.45 - 11.85
l - Length
28
r1 - Contact Diameter
18
Design
Hole mount
Hole mount
Round hole
Round hole
1 housing
1 housing
Pushing in
Pushing in
