282306

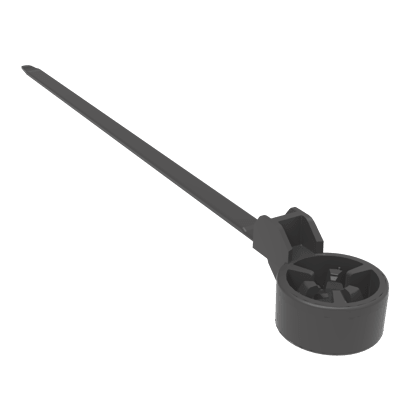

Cable & tube strap
Description
1 HOUSING CABLE & TUBE STRAP
Application
Powertrain
Fluid distribution system
Ev thermal management
Ice thermal management
Electric & electronics & cleaning
Electrical distribution system
High voltage EDS
Fuel delivery system
Low voltage EDS

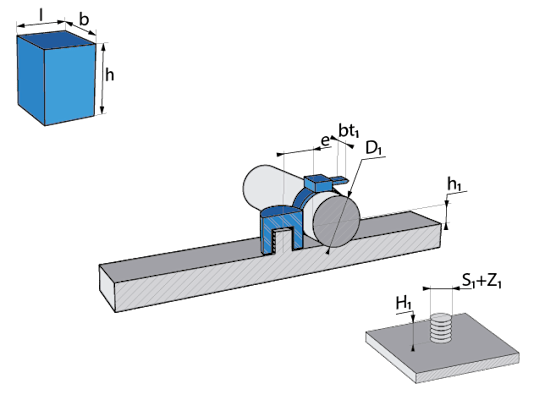

Dimensions
Use condition dimensions (mm)
D1 - Tube/Cable Diameter
1.5 - 30
Z1 - Stud Diameter
6
Product dimensions (mm)
b - Width
17.2
bt1 - Tie Width
4.5
e - Center to Center distance
13
h - Height
13.8
h1 - Height
23
l - Length
154.84
Design
Stud mount
Threaded stud
1 housing
Pull tie through fitting
Pushing on
