281471

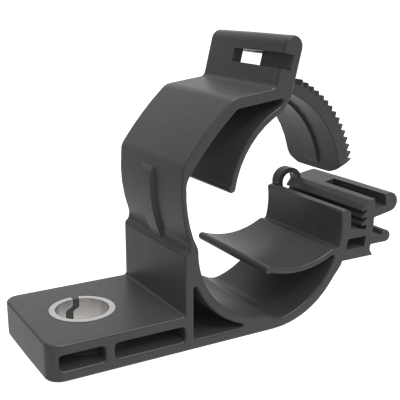

Cable, tube & busbar holder
Description
1 HOUSING CABLE, TUBE & BUSBAR HOLDER
Application
Electric & electronics & cleaning
Electrical distribution system
Low voltage EDS
Body
Exterior
Underbody
Download document

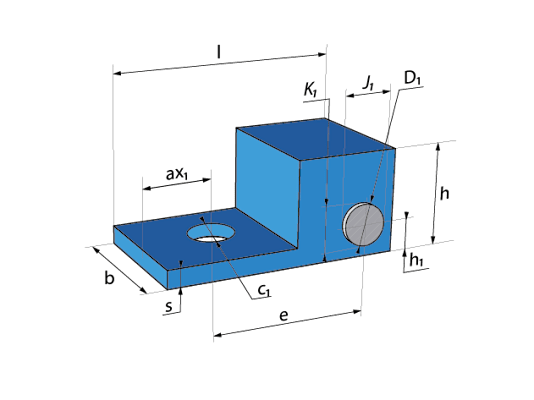

Dimensions
Use condition dimensions (mm)
D1 - Tube/Cable Diameter
25
J1 - Width of Housing
44
Product dimensions (mm)
ax1 - Center to edge distance
9.5
b - Width
22
c1 - Hole Diameter
8.5
e - Center to Center distance
28
h - Height
48
h1 - Height
16
l - Length
65
s - Product Thickness
1.5
Design
Mounting with other elements
Round hole
1 housing
Mounting with screws or other elements
Manually lock
