281127

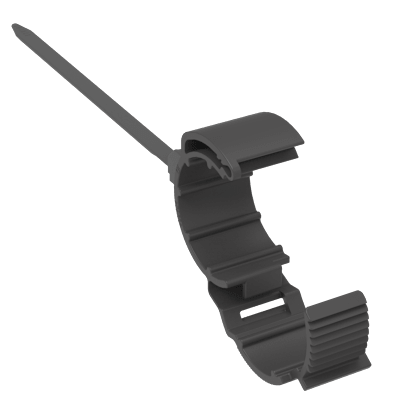

Cable & tube strap
Description
2 HOUSINGS CABLE & TUBE STRAP
Application
Electric & electronics & cleaning
Electrical distribution system
Low voltage EDS
Powertrain
Fluid distribution system
Ice thermal management
Download document
Dimensions
Use condition dimensions (mm)
D1 - Tube/Cable Diameter
1 - 20
D2 - Tube/Cable Diameter
25 - 28
Product dimensions (mm)
b - Width
20
bt1 - Tie Width
5
e1 - Center to Center distance
31 - 40.5
h - Height
50.6
l - Length
169.8
Design
No mount
Tube mount
2 housings
Pull tie through fitting
Manually lock
