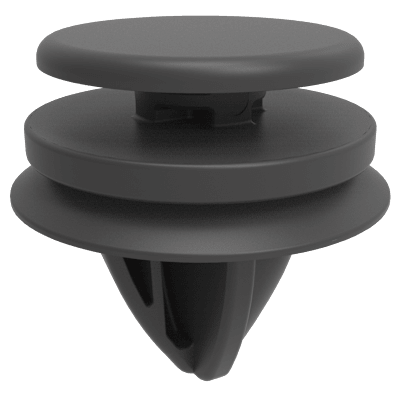

Double headed clip
Description
DOUBLE HEADED CLIP
Application
Body
Exterior
Exterior closures
Interior
Interior trim

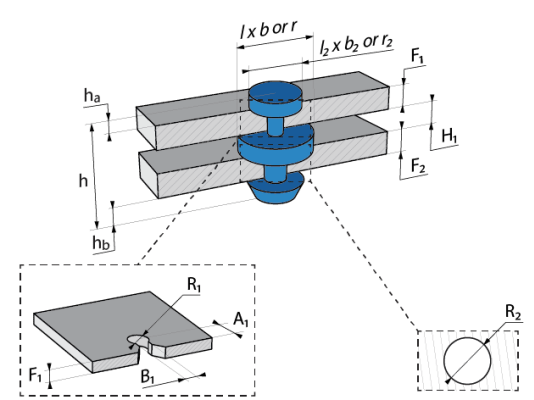

Dimensions
Use condition dimensions (mm)
F1 - Panel Thickness
1.7 - 2.3
F2 - Panel Thickness
0.8 - 2
R1 - Hole Diameter
6 - 10
R2 - Hole Diameter
8.4 - 8.6
Product dimensions (mm)
d - Diameter
17.7
h - Height
17.3
ha - Height above the support
1.2
hb - Height below support
10
r2 - Contact Diameter
17.7
Design
Hole mount
Round hole
Pushing in
