279221

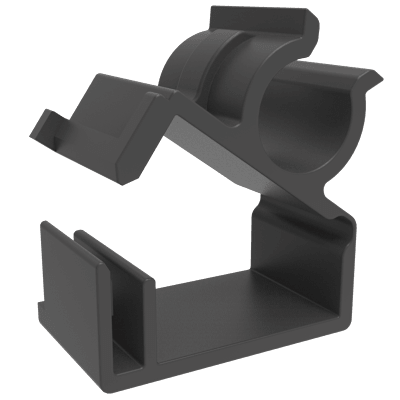

Spacer
Contact us
Description

2 HOUSINGS SPACER

Application
Electric & electronics & cleaning
Electric & electronics & cleaning
Electrical distribution system
Electrical distribution system
High voltage EDS
High voltage EDS
Download document

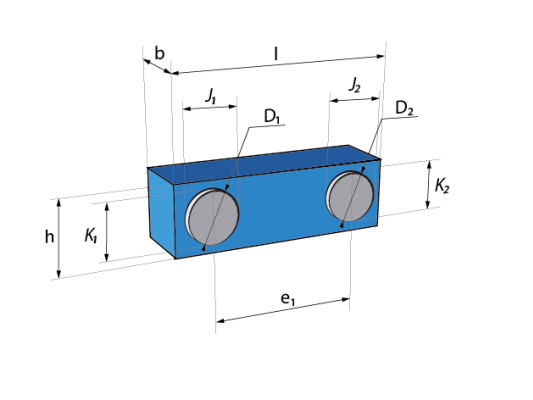

Dimensions
Use condition dimensions (mm)
D1 - Tube/Cable Diameter
8.6 - 9.8
D2 - Tube/Cable Diameter
18.8
Product dimensions (mm)
b - Width
15
h - Height
29.4
l - Length
27.5
Design
No mount
No mount
Round hole
Round hole
2 housings
2 housings
Pushing in
Pushing in
