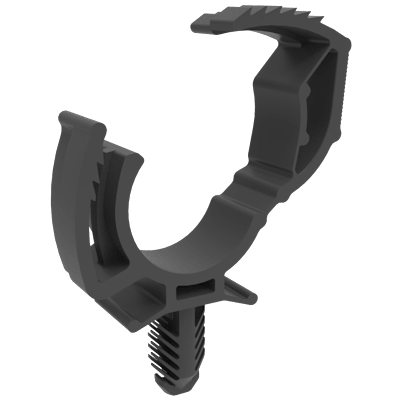

Cable, tube & busbar holder
Description
1 HOUSING CABLE, TUBE & BUSBAR HOLDER
Application
Powertrain
Ice powertrain
Engine
Body
Interior
Interior trim
Fluid distribution system
Ice thermal management
Electric & electronics & cleaning
Electrical distribution system
High voltage EDS
Download document
Dimensions
Use condition dimensions (mm)
D1 - Tube/Cable Diameter
13 - 17
F1 - Panel Thickness
0.6 - 4
R1 - Hole Diameter
6.5 - 6.7
Product dimensions (mm)
b - Width
10
b1 - Width
10
h - Height
48
h1 - Height
12.9
hb - Height below support
9.4 - 12.8
l - Length
37
l1 - Length
15
Design
Hole mount
Tube mount
Round hole
1 housing
Pushing in
