273218

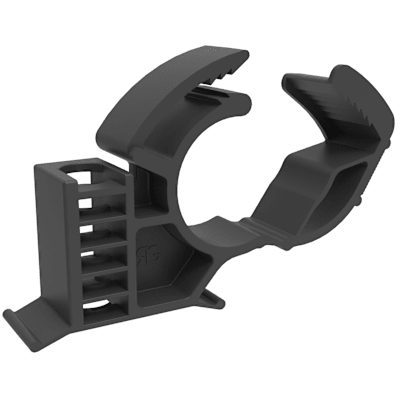

Cable, tube & bus bar holder
Description
1 HOUSING CABLE, TUBE & BUS BAR HOLDER
Application
Electric & electronics & cleaning
Electrical distribution system
High voltage EDS

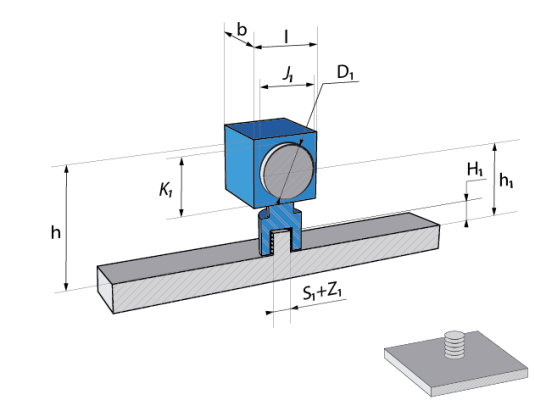

Dimensions
Use condition dimensions (mm)
D1 - Tube/Cable Diameter
13 - 18
H1 - Stud Height
20
J1 - Width of Housing
18.5
K1 - Height of housing
18.5
Z1 - Stud Diameter
6
Product dimensions (mm)
b - Width
12
h - Height
36.6
h1 - Height
17
l - Length
40
Design
Tube mount
Stud mount
Threaded stud
1 housing
Pushing on
