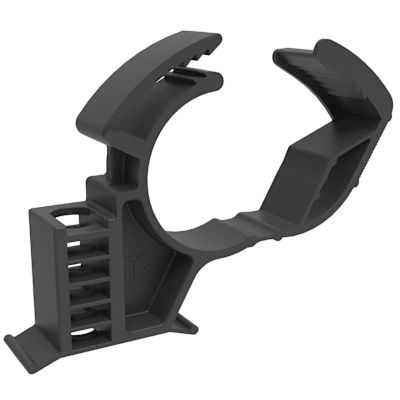

Cable, tube & busbar holder
Description
1 HOUSING CABLE, TUBE & BUSBAR HOLDER
Application
Electric & electronics & cleaning
Electrical distribution system
High voltage EDS
Powertrain
Ev powertrain
Ev power electronics components & support
Fluid distribution system
Fuel delivery system
Download document
Dimensions
Use condition dimensions (mm)
D1 - Tube/Cable Diameter
18 - 25
H1 - Stud Height
20
J1 - Width of Housing
25.5
K1 - Height of housing
25.5
Z1 - Stud Diameter
6
S1 - Screw/Thread
M6 x 1,00
Product dimensions (mm)
b - Width
12
h - Height
47.8
h1 - Height
25
l - Length
45
Design
Stud mount
Threaded stud
1 housing
Pushing on
