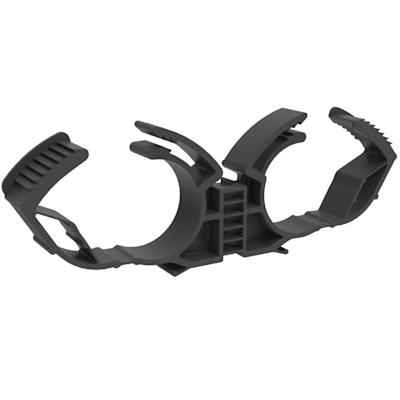

Cable, tube & busbar holder
Description
2 HOUSINGS CABLE, TUBE & BUSBAR HOLDER
Application
Electric & electronics & cleaning
Electrical distribution system
High voltage EDS
Powertrain
Fluid distribution system
Fuel delivery system
Download document

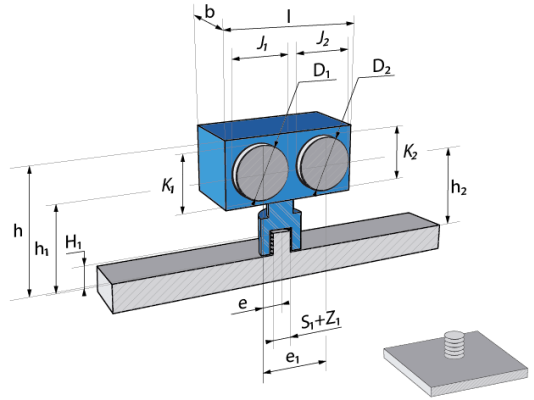

Dimensions
Use condition dimensions (mm)
D1 - Tube/Cable Diameter
18
D2 - Tube/Cable Diameter
28
H1 - Stud Height
20
J1 - Width of Housing
25.5
J2 - Width of Housing
25.5
K1 - Height of housing
25.5
K2 - Height of housing
25.5
Z1 - Stud Diameter
6
S1 - Screw/Thread
M6 x 1,00
Product dimensions (mm)
b - Width
12
e - Center to Center distance
20.4 - 22.5
e1 - Center to Center distance
40.4 - 45
h - Height
39.8
h1 - Height
14.5 - 17
h2 - Height
14.5 - 17
l - Length
75
Design
Stud mount
Threaded stud
2 housings
Pushing on
Manually lock
