Cable, tube & busbar holder
Description

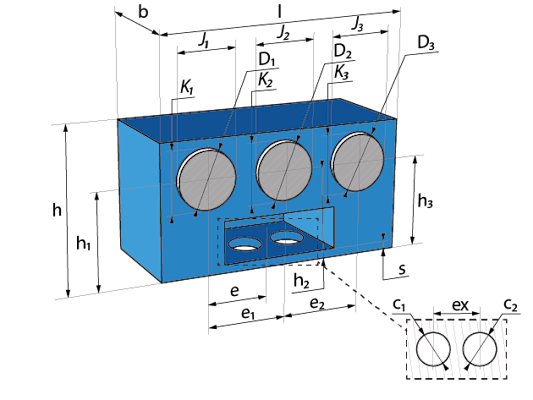

3 HOUSINGS CABLE, TUBE & BUSBAR HOLDER
Application
Electric & electronics & cleaning
Electrical distribution system
High voltage EDS
Download document
Dimensions
Use condition dimensions (mm)
D1 - Tube/Cable Diameter
21.2
D2 - Tube/Cable Diameter
21.2
D3 - Tube/Cable Diameter
21.2
Product dimensions (mm)
b - Width
21.2
c1 - Hole Diameter
8 - 10
c2 - Hole Diameter
7
e - Center to Center distance
26.6
e1 - Center to Center distance
25.8
e2 - Center to Center distance
33.8
ex1 - Center to Center distance
69.3
h - Height
30
h1 - Height
15.2
h2 - Height
15.2
h3 - Height
15.2
l - Length
117
s - Product Thickness
6
Design
Mounting with other elements
Multiple holes
3 housings
Mounting with screws or other elements
