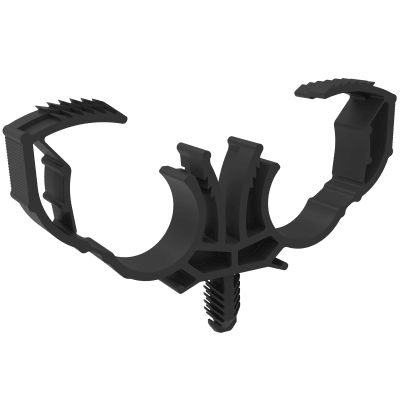

Cable, tube & busbar holder
Description
2 HOUSINGS CABLE, TUBE & BUSBAR HOLDER
Application
Electric & electronics & cleaning
Electrical distribution system
High voltage EDS
Powertrain
Ice powertrain
Engine
Fluid distribution system
Fuel delivery system
Download document
Dimensions
Use condition dimensions (mm)
D1 - Tube/Cable Diameter
14.5 - 18
D2 - Tube/Cable Diameter
14.5 - 18
F1 - Panel Thickness
0.6 - 4
R1 - Hole Diameter
6.5 - 6.7
Product dimensions (mm)
b - Width
10
b1 - Width
10
e - Center to Center distance
16.7
e1 - Center to Center distance
33.4
h - Height
48.3
h1 - Height
12.9
h2 - Height
12.9
hb - Height below support
7.9 - 11.3
l - Length
79
l1 - Length
25
Design
Hole mount
Tube mount
Round hole
2 housings
Pushing in
Pushing on
Manually lock
