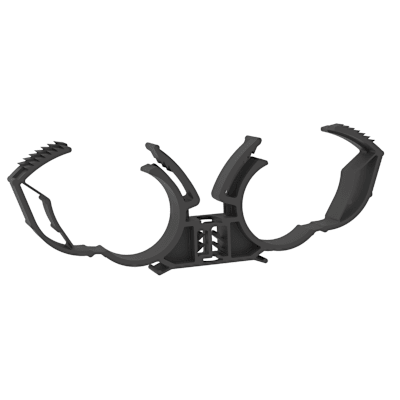

Cable, tube & busbar holder
Description
2 HOUSINGS CABLE, TUBE & BUSBAR HOLDER
Application
Electric & electronics & cleaning
Electrical distribution system
High voltage EDS
Dimensions
Use condition dimensions (mm)
D1 - Tube/Cable Diameter
23 - 27
D2 - Tube/Cable Diameter
23 - 27
H1 - Stud Height
14.2
S1 - Screw/Thread
M5 x 0,80
S2 - Screw/Thread
M6 x 1,00
S3 - Screw/Thread
T5 Stud
S4 - Screw/Thread
T6 Stud
Product dimensions (mm)
b - Width
10
e - Center to Center distance
10
e1 - Center to Center distance
48
h - Height
41.1
h1 - Height
17.5
h2 - Height
17.5
l - Length
80.6
Design
Stud mount
Tube mount
Threaded stud
2 housings
Pushing in
Manually lock
Pushing on
