262037

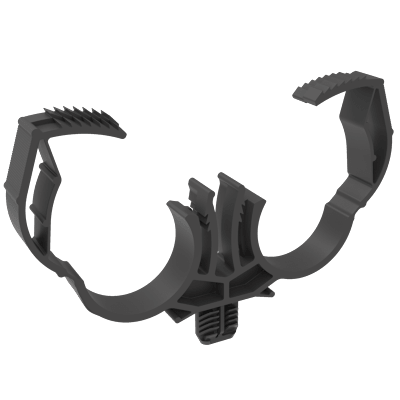

Cable, tube & busbar holder
Description
2 HOUSINGS CABLE, TUBE & BUSBAR HOLDER
Application
Powertrain
Fluid distribution system
Ice thermal management
Electric & electronics & cleaning
Electrical distribution system
High voltage EDS
Download document
Dimensions
Use condition dimensions (mm)
D1 - Tube/Cable Diameter
23 - 27
D2 - Tube/Cable Diameter
23 - 27
F1 - Panel Thickness
0.6 - 4
L1 - Length of Hole
11.7 - 13
R1 - Hole Diameter
6 - 7
Product dimensions (mm)
b - Width
10
b1 - Width
10
e - Center to Center distance
22.1
e1 - Center to Center distance
44.2
h - Height
64.5
h1 - Height
17.4
h2 - Height
17.4
hb - Height below support
6.3 - 9.7
l - Length
96.6
l1 - Length
11.6
Design
Hole mount
Tube mount
Oblong hole
2 housings
Pushing in
Manually lock
Pushing on
