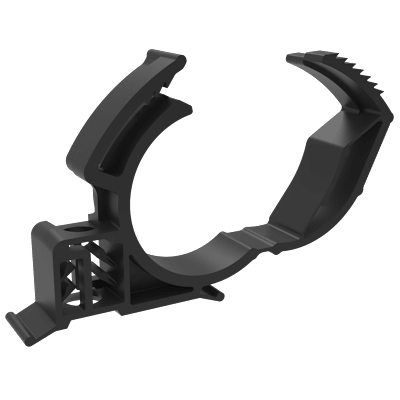

Cable, tube & busbar holder
Description
1 HOUSING CABLE, TUBE & BUSBAR HOLDER
Application
Body
Exterior
Roof system
Electric & electronics & cleaning
Electrical distribution system
High voltage EDS
Powertrain
Fluid distribution system
Ice thermal management
Download document
Dimensions
Use condition dimensions (mm)
D1 - Tube/Cable Diameter
23 - 27
H1 - Stud Height
15
S1 - Screw/Thread
M5 x 0,80
S2 - Screw/Thread
M6 x 1,00
S3 - Screw/Thread
T5 Stud
S4 - Screw/Thread
T6 Stud
Product dimensions (mm)
b - Width
10
b1 - Width
10
e - Center to Center distance
20
h - Height
39.8 - 40.3
h1 - Height
17.15
l - Length
45.7 - 49
l1 - Length
33
Design
Tube mount
Stud mount
Threaded stud
1 housing
Manually lock
Pushing on
