258350

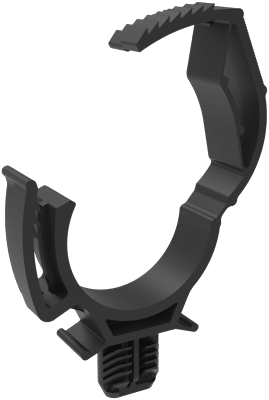

Cable, tube & busbar holder
Description
1 HOUSING CABLE, TUBE & BUSBAR HOLDER
Application
Electric & electronics & cleaning
Electrical distribution system
Powertrain
Fluid distribution system
Ice thermal management
High voltage EDS
Download document
Dimensions
Use condition dimensions (mm)
D1 - Tube/Cable Diameter
23 - 27
F1 - Panel Thickness
0.7 - 4
L1 - Length of Hole
11.7 - 13
R1 - Hole Diameter
6 - 7
Product dimensions (mm)
b - Width
10
b1 - Width
10
h - Height
45.7 - 52.3
h1 - Height
19
hb - Height below support
8.3 - 11.6
l - Length
36.9 - 37.7
l1 - Length
23.17
Design
Hole mount
Tube mount
Oblong hole
1 housing
1 panel thickness
Pushing on
Pushing in
Manually lock
