258043

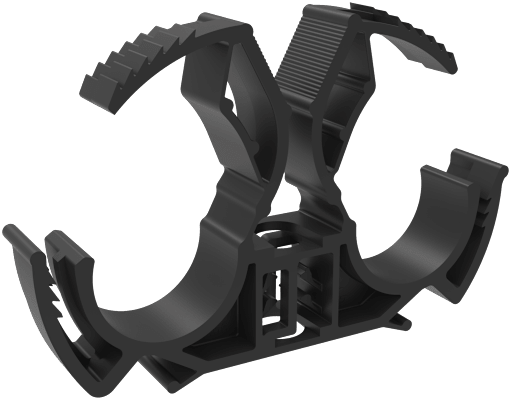

Cable, tube & bus bar holder
Description
2 HOUSINGS CABLE, TUBE & BUS BAR HOLDER
Application
Powertrain
Fluid distribution system
Fuel delivery system
Electric & electronics & cleaning
Cleaning system & ADAS
Cleaning system
Electrical distribution system
Ice thermal management
Body
Exterior
Roof system
High voltage EDS
Exterior trim
Ice powertrain
Gearbox & transmission
Ev powertrain
Front or rear bumper
Dimensions
Use condition dimensions (mm)
D1 - Tube/Cable Diameter
14.5 - 18
D2 - Tube/Cable Diameter
14.5 - 18
H1 - Stud Height
15
Product dimensions (mm)
b - Width
10
b1 - Width
10
e - Center to Center distance
17.5
e1 - Center to Center distance
35
h - Height
29.6
h1 - Height
14.5
h2 - Height
14.5
l - Length
66.8
l1 - Length
34.57
Design
Stud mount
Tube mount
Threaded stud
2 housings
Manually lock
Pushing on
