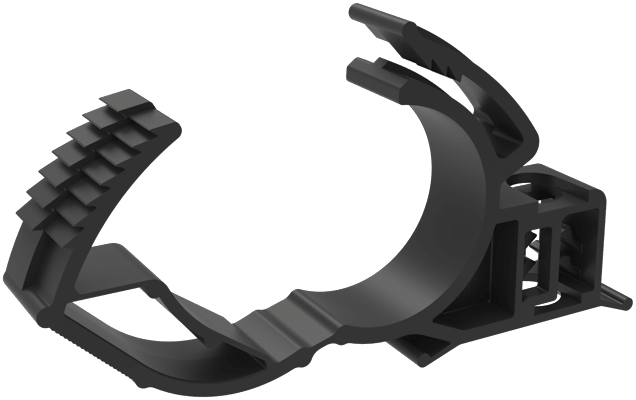

Cable, tube & busbar holder
Description
1 HOUSING CABLE, TUBE & BUSBAR HOLDER
Application
Electric & electronics & cleaning
Electrical distribution system
High voltage EDS
Powertrain
Ev powertrain
Fluid distribution system
Fuel delivery system
Ev thermal management
Body
Interior
Interior trim
Download document
Dimensions
Use condition dimensions (mm)
D1 - Tube/Cable Diameter
18 - 23
S1 - Screw/Thread
M5 x 0,80
S2 - Screw/Thread
M6 x 1,00
S3 - Screw/Thread
T5 Stud
S4 - Screw/Thread
T6 Stud
Product dimensions (mm)
b - Width
10
b1 - Width
10
e - Center to Center distance
22
h - Height
35.7
h1 - Height
16
l - Length
45.6 - 49.8
l1 - Length
28.15
Design
Stud mount
Tube mount
Threaded stud
1 housing
Pushing on
Manually lock
