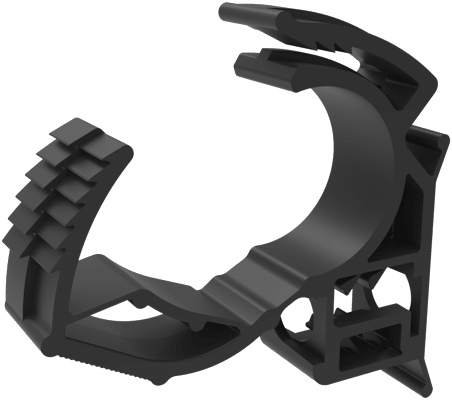

Cable, tube & busbar holder
Description
1 HOUSING CABLE, TUBE & BUSBAR HOLDER
Application
Chassis
Chassis
Braking system
Powertrain
Fluid distribution system
Ice thermal management
Electric & electronics & cleaning
Electrical distribution system
Low voltage EDS
Fuel delivery system
Body
Exterior
Underbody
High voltage EDS
Download document

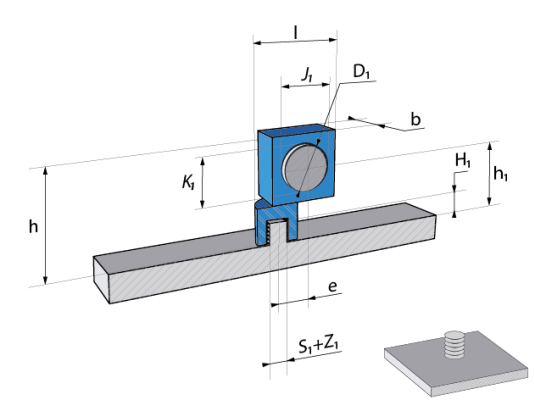

Dimensions
Use condition dimensions (mm)
D1 - Tube/Cable Diameter
14.5 - 18
S1 - Screw/Thread
M5 x 0,80
S2 - Screw/Thread
M6 x 1,00
S3 - Screw/Thread
T5 Stud
S4 - Screw/Thread
T6 Stud
Product dimensions (mm)
b - Width
10
b1 - Width
10
e - Center to Center distance
15
h - Height
25.5 - 29.6
h1 - Height
14.5
l - Length
42
l1 - Length
27.67
Design
Stud mount
Tube mount
Threaded stud
1 housing
Manually lock
Pushing on
