258037

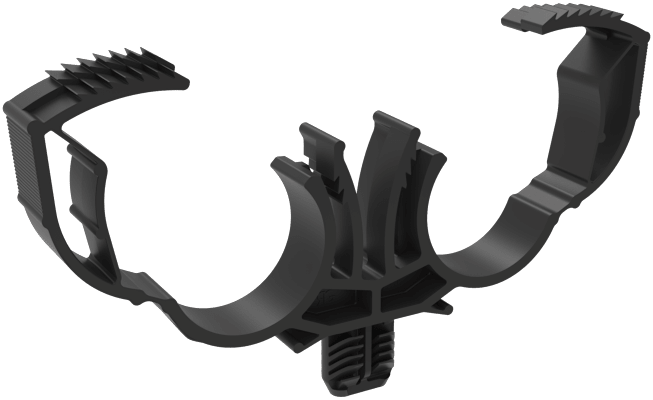

Cable, tube & busbar holder
Description
2 HOUSINGS CABLE, TUBE & BUSBAR HOLDER
Application
Electric & electronics & cleaning
Electrical distribution system
Low voltage EDS
Powertrain
Fluid distribution system
Ice thermal management
Fuel delivery system
Body
Exterior
Exterior trim
Interior
Cockpit & instrument panel
Interior trim
Chassis
Chassis
Braking system
High voltage EDS
Download document
Dimensions
Use condition dimensions (mm)
D1 - Tube/Cable Diameter
18 - 23
D2 - Tube/Cable Diameter
18 - 23
F1 - Panel Thickness
0.6 - 4
L1 - Length of Hole
11.7 - 13
R1 - Hole Diameter
6 - 7
Product dimensions (mm)
b - Width
10
b1 - Width
10
e - Center to Center distance
20
e1 - Center to Center distance
40
h - Height
49.1
h1 - Height
14.9
h2 - Height
14.9
hb - Height below support
8.3 - 11.7
l - Length
70.2
l1 - Length
25.54
Design
Tube mount
Hole mount
Oblong hole
1 panel thickness
2 housings
Manually lock
Pushing in
Pushing on
