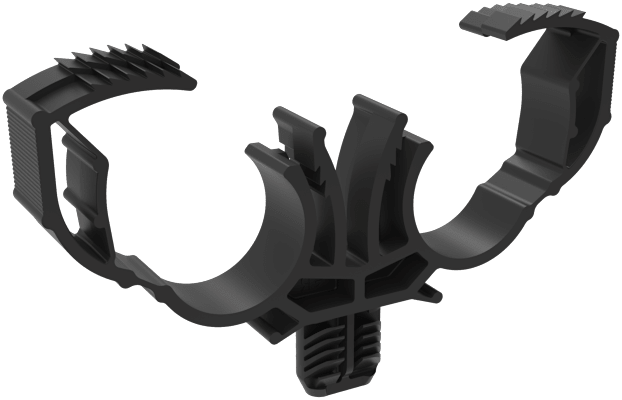

Cable, tube & busbar holder
Description
2 HOUSINGS CABLE, TUBE & BUSBAR HOLDER
Application
Powertrain
Fluid distribution system
Ev thermal management
Electric & electronics & cleaning
Actuators
Electrical distribution system
High voltage EDS
Dimensions
Use condition dimensions (mm)
D1 - Tube/Cable Diameter
14.5 - 18
D2 - Tube/Cable Diameter
14.5 - 18
F1 - Panel Thickness
0.6 - 4
L1 - Length of Hole
11.7 - 12
R1 - Hole Diameter
6 - 7
Product dimensions (mm)
b - Width
10
b1 - Width
10
e - Center to Center distance
16.7
e1 - Center to Center distance
33.4
h - Height
43.2
h1 - Height
12.9
h2 - Height
12.9
hb - Height below support
8.3 - 11.7
l - Length
57.5
l1 - Length
23.57
Design
Hole mount
Tube mount
Oblong hole
2 housings
1 panel thickness
Pushing in
Pushing on
Manually lock
