Cable, tube & busbar holder
Description

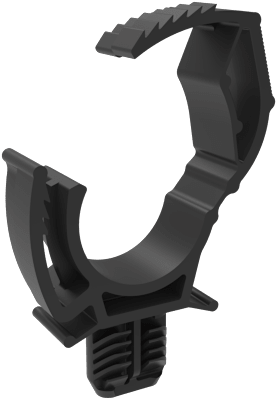

1 HOUSING CABLE, TUBE & BUSBAR HOLDER
Application
Electric & electronics & cleaning
Electrical distribution system
High voltage EDS
Dimensions
Use condition dimensions (mm)
D1 - Tube/Cable Diameter
14.5 - 18
F1 - Panel Thickness
0.6 - 4
L1 - Length of Hole
11.7 - 12
R1 - Hole Diameter
6 - 7
Product dimensions (mm)
b - Width
10
b1 - Width
10
h - Height
37.3 - 41.1
h1 - Height
13.9
hb - Height below support
8.3 - 11.6
l - Length
26.8
l1 - Length
21.57
Design
Hole mount
Tube mount
Oblong hole
1 housing
1 panel thickness
Pushing in
Pushing on
Manually lock
