D1 - Tube/Cable Diameter1.5 - 30Z1 - Stud Diameter6279221Spacer
D1 - Tube/Cable Diameter8.6 - 9.8D2 - Tube/Cable Diameter18.8279219Cable, tube & bus bar holder
F1 - Panel Thickness1 - 4R1 - Hole Diameter6.3 - 6.7278427Cable, tube & bus bar holder
D1 - Tube/Cable Diameter13 - 17F1 - Panel Thickness0.6 - 4R1 - Hole Diameter6.5 - 6.7277692Cable, tube & bus bar holder
D1 - Tube/Cable Diameter23 - 26F1 - Panel Thickness0.8 - 2R1 - Hole Diameter6.3 - 6.7277422Cable, tube & bus bar holder
D1 - Tube/Cable Diameter23 - 27D2 - Tube/Cable Diameter23 - 27F1 - Panel Thickness0.6 - 4275485Cable, tube & bus bar holder
D1 - Tube/Cable Diameter7 - 10D2 - Tube/Cable Diameter13 - 18273218Cable, tube & bus bar holder
D1 - Tube/Cable Diameter13 - 18H1 - Stud Height20J1 - Width of Housing18.5272826Cable, tube & bus bar holder
D1 - Tube/Cable Diameter18 - 25H1 - Stud Height20J1 - Width of Housing25.5270884Cable, tube & bus bar holder
D1 - Tube/Cable Diameter27 - 32D2 - Tube/Cable Diameter27 - 32F1 - Panel Thickness0.6 - 4270883Cable, tube & bus bar holder
D1 - Tube/Cable Diameter27 - 32F1 - Panel Thickness0.6 - 4L1 - Length of Hole11.7 - 13269971Cable, tube & bus bar holder
D1 - Tube/Cable Diameter18D2 - Tube/Cable Diameter28H1 - Stud Height20263510Cable, tube & bus bar holder
D1 - Tube/Cable Diameter14.5 - 18D2 - Tube/Cable Diameter14.5 - 18F1 - Panel Thickness0.6 - 4262462Cable, tube & bus bar holder
D1 - Tube/Cable Diameter23 - 27D2 - Tube/Cable Diameter23 - 27H1 - Stud Height15262038Cable, tube & bus bar holder
D1 - Tube/Cable Diameter23 - 27D2 - Tube/Cable Diameter23 - 27H1 - Stud Height14.2262037Cable, tube & bus bar holder
D1 - Tube/Cable Diameter23 - 27D2 - Tube/Cable Diameter23 - 27F1 - Panel Thickness0.6 - 4259963Connector holder
F1 - Panel Thickness0.7 - 3L1 - Length of Hole12 - 12.2R1 - Hole Diameter6 - 6.2258351Cable, tube & bus bar holder
D1 - Tube/Cable Diameter23 - 27H1 - Stud Height15258350Cable, tube & bus bar holder
D1 - Tube/Cable Diameter23 - 27F1 - Panel Thickness0.7 - 4L1 - Length of Hole11.7 - 13258043Cable, tube & bus bar holder
D1 - Tube/Cable Diameter14.5 - 18D2 - Tube/Cable Diameter14.5 - 18H1 - Stud Height15258041Cable, tube & bus bar holder
D1 - Tube/Cable Diameter18 - 23258040Cable, tube & bus bar holder
D1 - Tube/Cable Diameter14.5 - 18258038Cable, tube & bus bar holder
D1 - Tube/Cable Diameter37 - 42.1D2 - Tube/Cable Diameter37 - 42.1F1 - Panel Thickness0.6 - 4258037Cable, tube & bus bar holder
D1 - Tube/Cable Diameter18 - 23D2 - Tube/Cable Diameter18 - 23F1 - Panel Thickness0.6 - 4258036Cable, tube & bus bar holder
D1 - Tube/Cable Diameter14.5 - 18D2 - Tube/Cable Diameter14.5 - 18F1 - Panel Thickness0.6 - 4258034Cable, tube & bus bar holder
B1 - Width of Hole6 - 7D1 - Tube/Cable Diameter18 - 23F1 - Panel Thickness0.6 - 4258033Cable, tube & bus bar holder
D1 - Tube/Cable Diameter14.5 - 18F1 - Panel Thickness0.6 - 4L1 - Length of Hole11.7 - 12256297Cable, tube & bus bar holder
D1 - Tube/Cable Diameter18 - 22D2 - Tube/Cable Diameter18 - 22255874Cable, tube & bus bar holder
D1 - Tube/Cable Diameter21F1 - Panel Thickness0.7 - 3.5R1 - Hole Diameter6.5 - 6.7255175Cable, tube & bus bar holder
D1 - Tube/Cable Diameter18 - 22D2 - Tube/Cable Diameter18 - 22F1 - Panel Thickness0.7 - 3.530 of 113

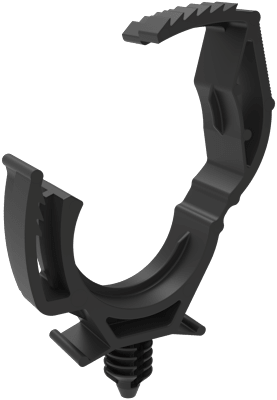

255874
Cable, tube & bus bar holder
Description
1 HOUSING CABLE, TUBE & BUS BAR HOLDER
Application
Electric & electronics & cleaning
Electrical distribution system
High voltage EDS
Low voltage EDS
Powertrain
Fluid distribution system
Ice thermal management
Dimensions
Use condition dimensions (mm)
D1 - Tube/Cable Diameter
21
F1 - Panel Thickness
0.7 - 3.5
R1 - Hole Diameter
6.5 - 6.7
Product dimensions (mm)
b - Width
10
b1 - Width
10
h - Height
44.1
h1 - Height
16.5
hb - Height below support
7.7 - 10.5
l - Length
31.6
l1 - Length
21.5
Design
Tube mount
Hole mount
Round hole
1 panel thickness
1 housing
Pushing on
Manually lock
Pushing in
