D1 - Tube/Cable Diameter18 - 22D2 - Tube/Cable Diameter18 - 22F1 - Panel Thickness0.7 - 3.530 of 113
255175

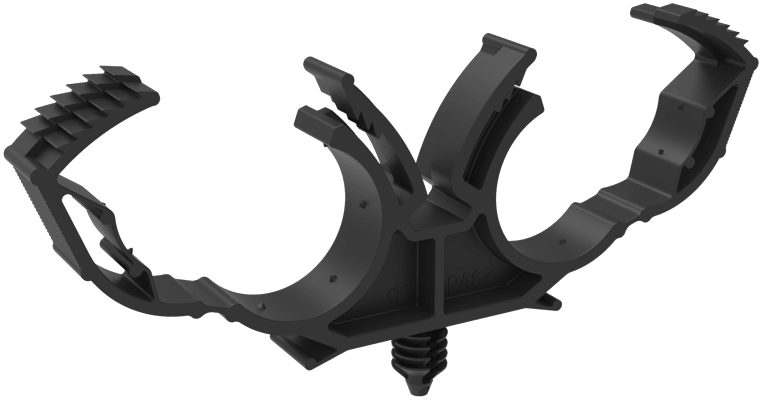

Cable, tube & bus bar holder
Description
2 HOUSINGS CABLE, TUBE & BUS BAR HOLDER
Application
Electric & electronics & cleaning
Electrical distribution system
Powertrain
Fluid distribution system
Ice thermal management
Ev thermal management
High voltage EDS
Fuel delivery system
Low voltage EDS
Ice powertrain
Engine
Dimensions
Use condition dimensions (mm)
D1 - Tube/Cable Diameter
18 - 22
D2 - Tube/Cable Diameter
18 - 22
F1 - Panel Thickness
0.7 - 3.5
R1 - Hole Diameter
6.5 - 6.7
Product dimensions (mm)
b - Width
10
b1 - Width
10
e - Center to Center distance
19.5
e1 - Center to Center distance
39
h - Height
37.1
h1 - Height
16.5
h2 - Height
16.5
hb - Height below support
7.7 - 10.5
l - Length
66.3
l1 - Length
39
Design
Tube mount
Hole mount
Round hole
1 panel thickness
2 housings
Pushing on
Manually lock
Pushing in
