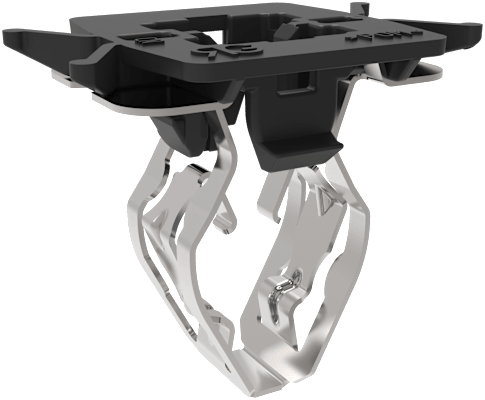

254516
Panel fasteners in two or more pieces
Contact us
Description

PANEL FASTENERS IN TWO OR MORE PIECES

Application
Body
Body
Interior
Interior
Interior trim
Interior trim
Download document
Dimensions

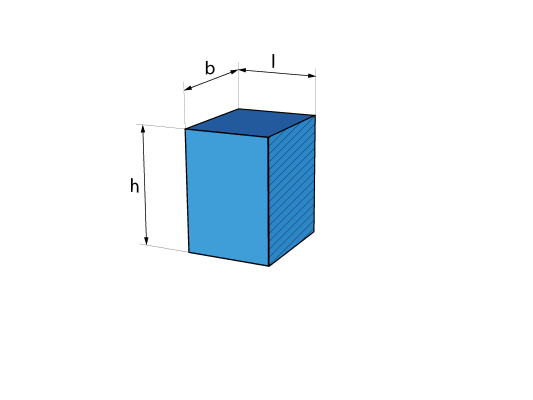

Product dimensions (mm)
b - Width
21.4
h - Height
27.3
l - Length
30.9
Design
Hole mount
Hole mount
Special shape hole
Special shape hole
Pushing in
Pushing in
