Tape on
Description
1 HOUSING TAPE ON
Application
Electric & electronics & cleaning
Electrical distribution system
Low voltage EDS
Download document

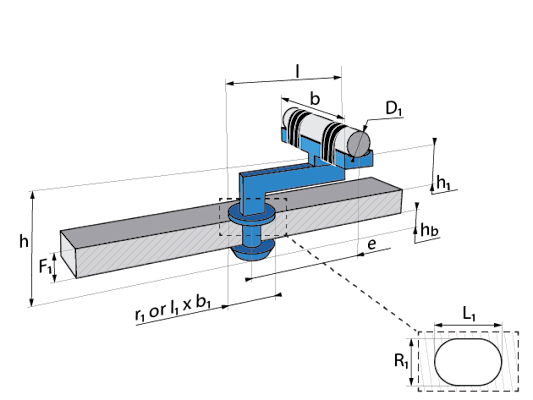

Dimensions
Use condition dimensions (mm)
B1 - Width of Hole
6.5 - 6.7
D1 - Tube/Cable Diameter
0 - 50
F1 - Panel Thickness
0.5 - 2.5
L1 - Length of Hole
10 - 11
L2 - Length of Hole
12 - 13
R1 - Hole Diameter
6.5 - 6.7
Product dimensions (mm)
b - Width
24
bta1 - Width of tape-on
8
e - Center to Center distance
10
h - Height
10.9
h1 - Height
2
hb - Height below support
5 - 7
l - Length
40
l1 - Length
11.5
Design
Tube mount
Hole mount
Rectangular hole
Oblong hole
1 housing
Apply tape
Pushing in
