243111
Push-rivet
Description
PUSH-RIVET
Application
Body
Exterior
Front or rear bumper
Interior
Seating system
Exterior closures
Exterior trim
Interior trim
Cockpit & instrument panel

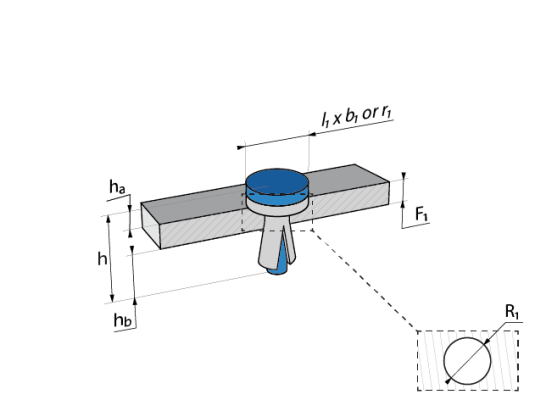

Dimensions
Use condition dimensions (mm)
F1 - Panel Thickness
4.5 - 5.5
R1 - Hole Diameter
5 - 5.2
Product dimensions (mm)
b1 - Width
10
h - Height
14
ha - Height above the support
3
hb - Height below support
7 - 9
l1 - Length
10
r1 - Contact Diameter
10
Design
Hole mount
Round hole
1 panel thickness
Pushing-pressing in
