D1 - Tube/Cable Diameter1 - 50D2 - Tube/Cable Diameter16 - 18285408Cable, tube & bus bar holder
D - Tube/Cable Diameter14 - 15F - Panel Thickness1 - 3.5285407Cable, tube & bus bar holder
D - Tube/Cable Diameter14 - 15F - Panel Thickness0.6 - 6R - Length of Hole6.5 - 6.7285014Cable & tube strap
D - Tube/Cable Diameter8 - 33F - Panel Thickness0.6 - 3L - Length of Hole12.1 - 12.3285013Cable, tube & bus bar holder
D - Tube/Cable Diameter7.8 - 8.5F - Panel Thickness2 - 4284406Cable, tube & bus bar holder
D1 - Tube/Cable Diameter16 - 24D2 - Tube/Cable Diameter16 - 24F - Panel Thickness0.8 - 6284405Cable, tube & bus bar holder
D1 - Tube/Cable Diameter16 - 24D2 - Tube/Cable Diameter16 - 24F - Panel Thickness0.6 - 3284404Cable, tube & bus bar holder
D - Tube/Cable Diameter18 - 20F - Panel Thickness0.6 - 6G - Height of Cavity13 - 100284263Cable, tube & bus bar holder
D - Tube/Cable Diameter25.1 - 25.9F - Panel Thickness0.5 - 3R - Length of Hole6.3 - 6.7284023Cable, tube & bus bar holder
D - Tube/Cable Diameter7.8 - 8.5F - Panel Thickness2 - 4283702Push-rivet
F - Panel Thickness3 - 7.5R - Length of Hole8.7 - 9.2283603Cable & tube strap
D1 - Tube/Cable Diameter14 - 15D2 - Tube/Cable Diameter13 - 14D3 - Tube/Cable Diameter8 - 33283232Cable, tube & bus bar holder
D - Tube/Cable Diameter19 - 24.5F - Panel Thickness0.6 - 6R - Length of Hole6.5 - 6.7283209Cable & tube strap
D1 - Tube/Cable Diameter6D2 - Tube/Cable Diameter6D3 - Tube/Cable Diameter8 - 50283132Cable & tube strap
D1 - Tube/Cable Diameter8 - 50D2 - Tube/Cable Diameter16 - 18283122Connector holder
F - Panel Thickness0.7 - 4R - Length of Hole6.9 - 7.1282448Spacer
D1 - Tube/Cable Diameter15 - 16D2 - Tube/Cable Diameter39 - 41282447Cable & tube strap
D1 - Tube/Cable Diameter1 - 33D2 - Tube/Cable Diameter16 - 18282306Cable & tube strap
D - Tube/Cable Diameter1.5 - 30Z - Stud Diameter6282035Cable, tube & bus bar holder
D - Tube/Cable Diameter18 - 20F - Panel Thickness0.6 - 6R - Length of Hole6.3 - 6.7281484Spacer
D1 - Tube/Cable Diameter5 - 5.3D2 - Tube/Cable Diameter5 - 5.3D3 - Tube/Cable Diameter5 - 5.3281471Cable, tube & bus bar holder
D - Tube/Cable Diameter25J - Width of Housing44281470Cable, tube & bus bar holder
D - Tube/Cable Diameter48 - 60281448Cable, tube & bus bar holder
D - Tube/Cable Diameter4 - 4.5F - Panel Thickness0.8 - 6R - Length of Hole4.8 - 5.2281298Cable, tube & bus bar holder
D - Tube/Cable Diameter10 - 14F - Panel Thickness0.8 - 8R - Length of Hole7.8 - 8.2281127Cable & tube strap
D1 - Tube/Cable Diameter1 - 20D2 - Tube/Cable Diameter25 - 28280985Cable, tube & bus bar holder
D - Tube/Cable Diameter16 - 18F - Panel Thickness0.6 - 5R - Length of Hole6.5 - 6.7280961Double headed clip
F1 - Panel Thickness1.7 - 2.3F2 - Panel Thickness0.8 - 2R1 - Length of Hole6 - 10280862Cable & tube strap
D1 - Tube/Cable Diameter8 - 33D2 - Tube/Cable Diameter4.5 - 7.1280817Double headed clip
B - Width of Hole4.9F1 - Panel Thickness2.6F2 - Panel Thickness0.6 - 1.530 of 5557

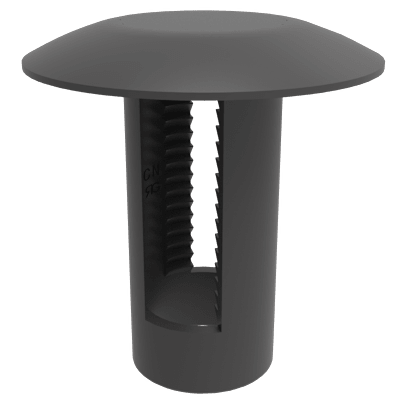

241991
Panel fasteners in two or more pieces
Description
PANEL FASTENERS IN TWO OR MORE PIECES
Application
Body
Exterior
Underbody
Interior
Interior trim
Dimensions
Use condition dimensions (mm)
F - Panel Thickness
21.5
R - Length of Hole
10.4 - 18
Product dimensions (mm)
d - Diameter
22
h - Height
15.3
ha - Height above the support
2.52
Design
Hole mount
Round hole
Pushing in
