233525

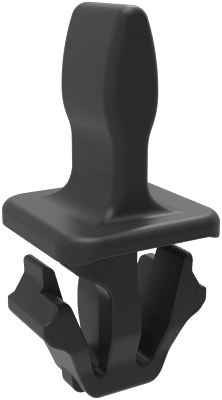

Panel fasteners in two or more pieces
Description
PANEL FASTENERS IN TWO OR MORE PIECES
Application
Body
Interior
Interior trim
Exterior
Exterior trim
Dimensions
Use condition dimensions (mm)
B1 - Width of Hole
5.4 - 5.6
B2 - Width of Hole
16.85 - 17.15
F1 - Panel Thickness
2.9 - 3.1
F2 - Panel Thickness
3.2 - 3.4
H1 - Stud Height
1.9 - 2.5
L1 - Length of Hole
7.4 - 7.6
L2 - Length of Hole
12.27 - 12.53
Product dimensions (mm)
b - Width
10.5
h - Height
23
ha - Height above the support
8
l - Length
11.17
Design
Hole mount
Cavity mount
Rectangular hole
1 panel thickness
Pushing in
