216632

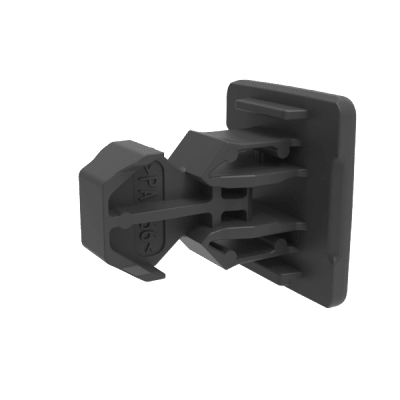

Panel fasteners in two or more pieces
Description
PANEL FASTENERS IN TWO OR MORE PIECES
Application
Body
Interior
Interior trim
Dimensions
Use condition dimensions (mm)
B1 - Width of Hole
12.2
F1 - Panel Thickness
4.5
F2 - Panel Thickness
0.9 - 1.5
H1 - Stud Height
10
L1 - Length of Hole
14.2
Product dimensions (mm)
b - Width
16.8
h - Height
18.24
l - Length
15.7
Design
Hole mount
Device mount
Rectangular hole
Pushing in
